FOUNDATION FOR AN OVERPASS AT A GAS PROCESSING PLANT

Location
Merefa, Kharkiv region

Date
December 2021

Terms:
3 working days

Ground screws
94 pcs

Object type
Overpass (industrial facility)

Challenges

The foundation implementation was carried out within an industrial enterprise with increased requirements for deadlines and structural reliability, which involved:

SELECTION CRITERIA
FOR THE ENGINEERING SOLUTION

Execution deadlines, performance in sandy soils, and reliability requirements for the industrial overpass foundation.

Adopted Engineering Solution

A screw pile foundation was chosen for the facility, which allowed:

The foundation project was developed taking into account the loads from the metal overpass, the operating conditions of the industrial facility, and the requirements for the accuracy of support positioning.

РЕАЛІЗОВАНІ РІШЕННЯ

Інженери PILLAR
розробили проєкт палійно-
гвинтового фундаменту

Який ідеально підходить

Конструкція:

A screw pile foundation was chosen for the facility, which allowed:

Тип паль:

Навантаження:

Особливості монтажу

Implementation Process

Engineering site assessment

An assessment of the soil conditions and foundation placement within the production area of the enterprise was conducted.

Project preparation

A screw foundation project was developed taking into account the loads from the overpass structure and the specified execution deadlines.

Production of piles

A set of screw piles has been prepared according to the design quantity and calculated parameters.

Delivery and installation

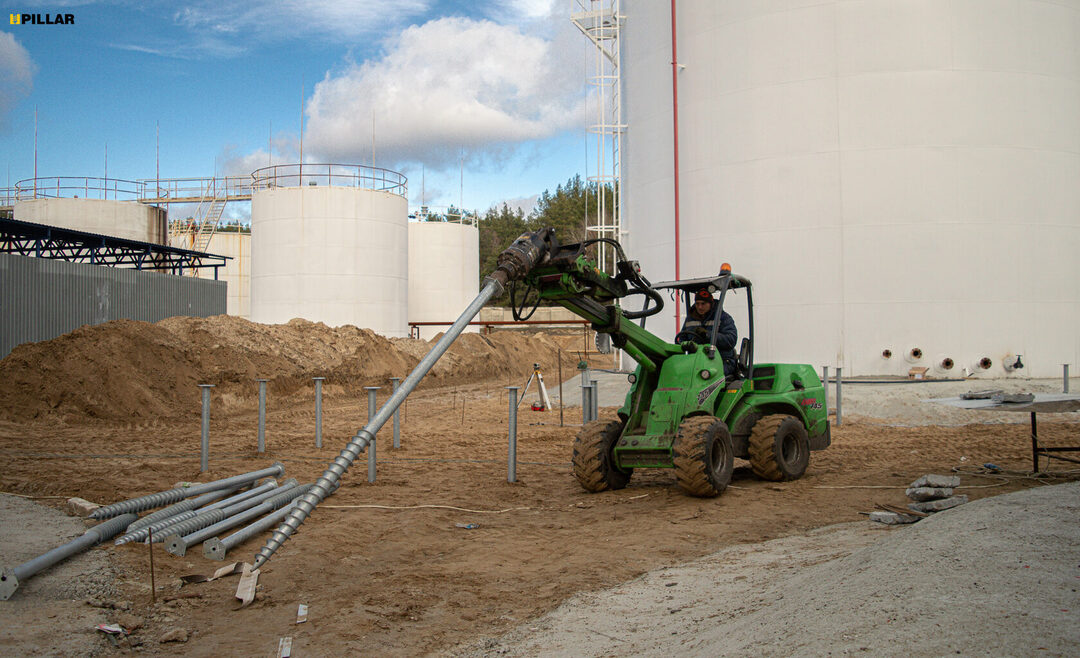

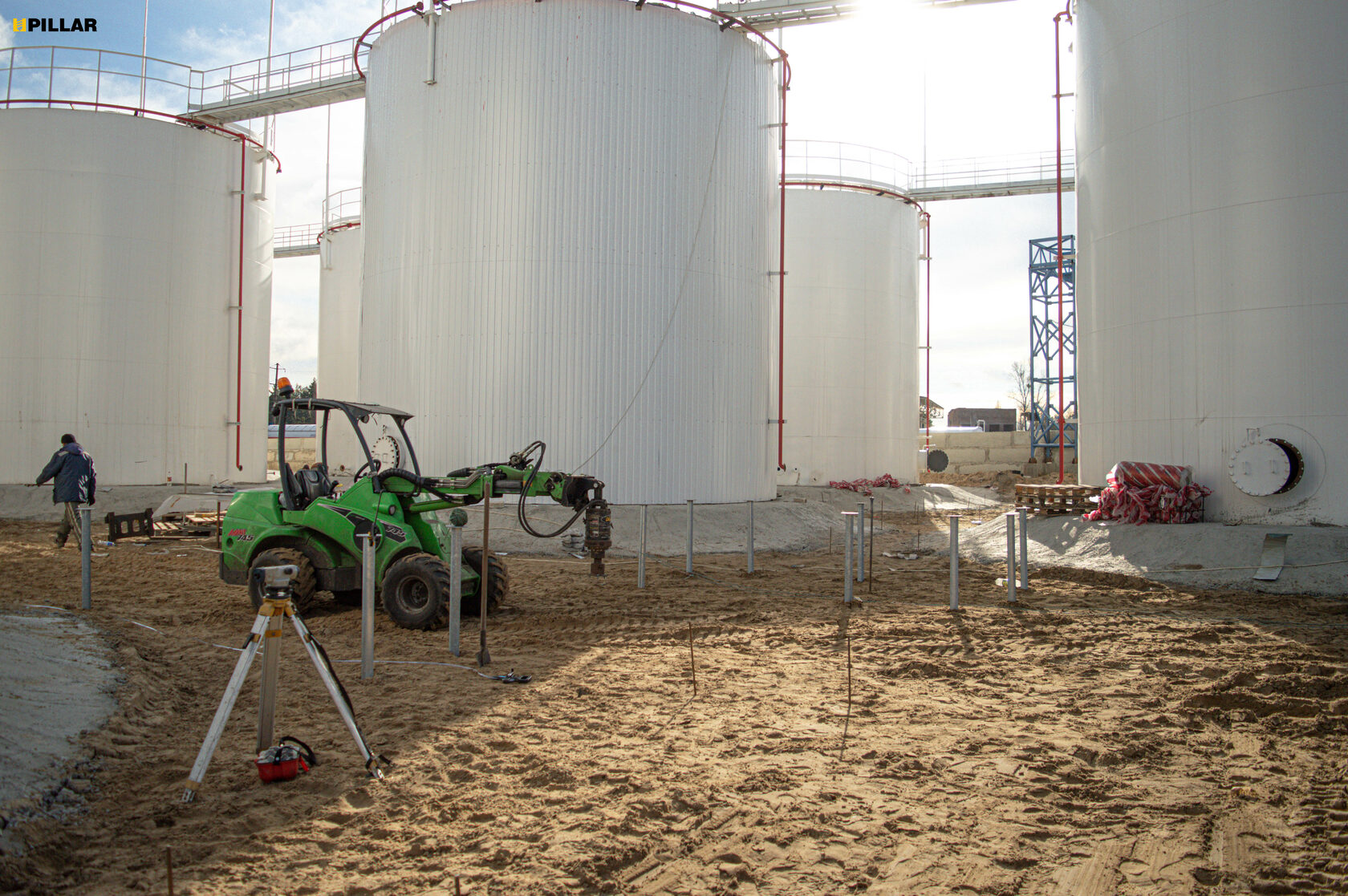

The installation of 94 ground screws was performed in sandy soil with verticality and stability control for the supports.

Completion and handover

The finished foundation base has been handed over for the subsequent installation of the metal overpass.

Result

The use of a screw foundation allowed for the implementation of the project within tight deadlines and provided a reliable base for the industrial structure:

That is why the client turned to PILLAR

as an engineering solution with fast installation and predictable reliability for the industrial overpass was required.

That is why the client turned to PILLAR

as an engineering solution with fast installation and predictable reliability for the industrial overpass was required.
